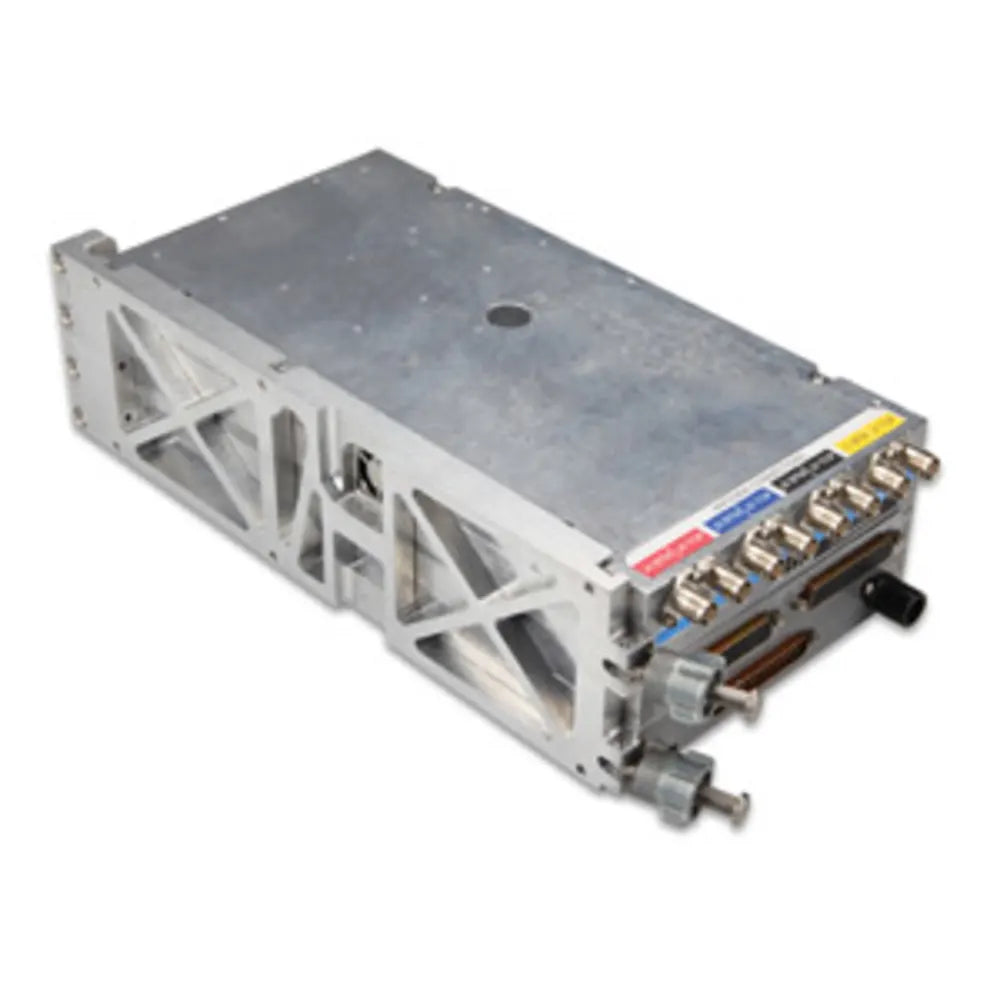

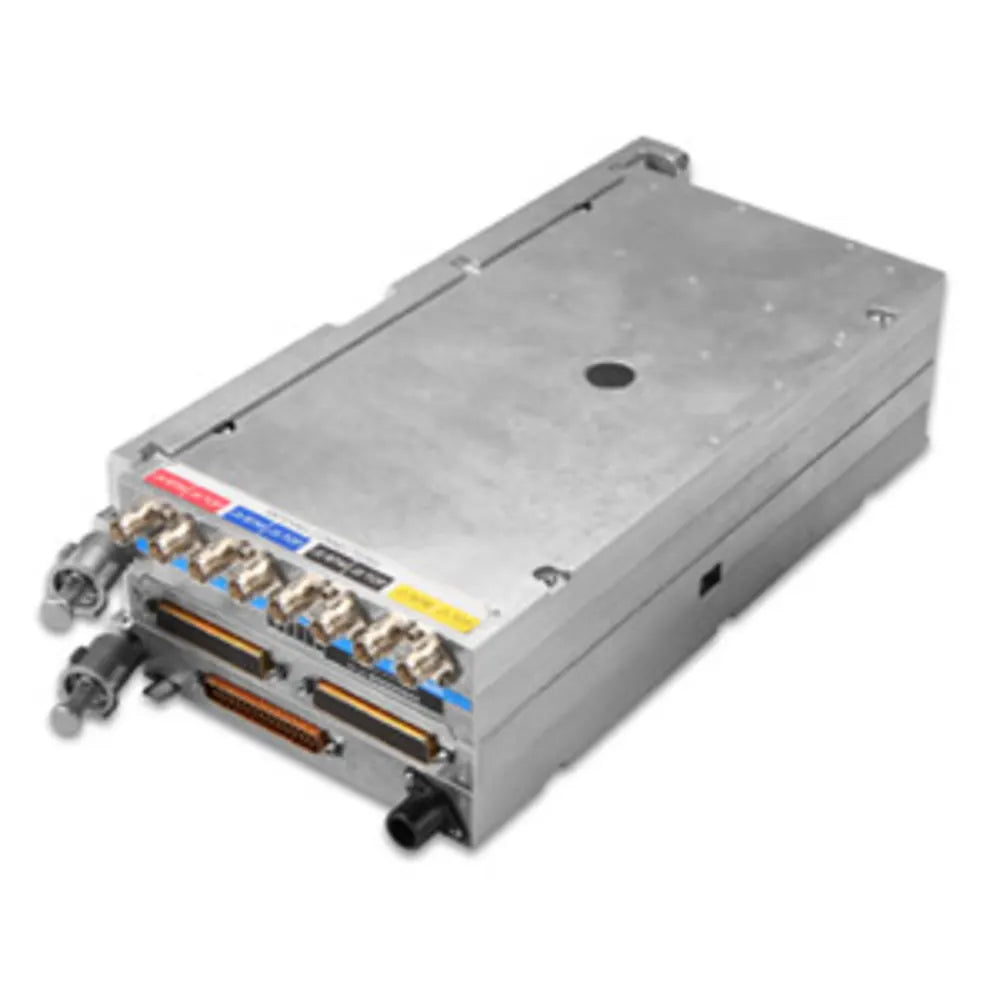

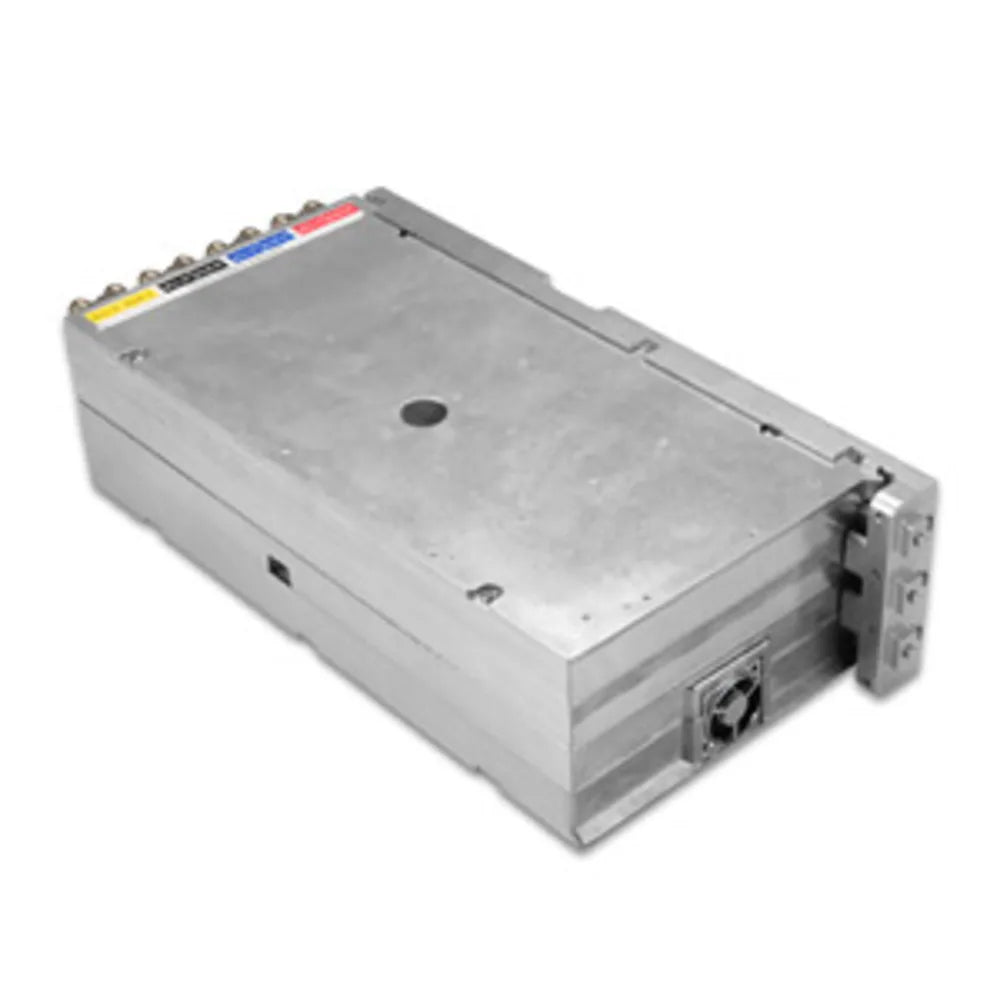

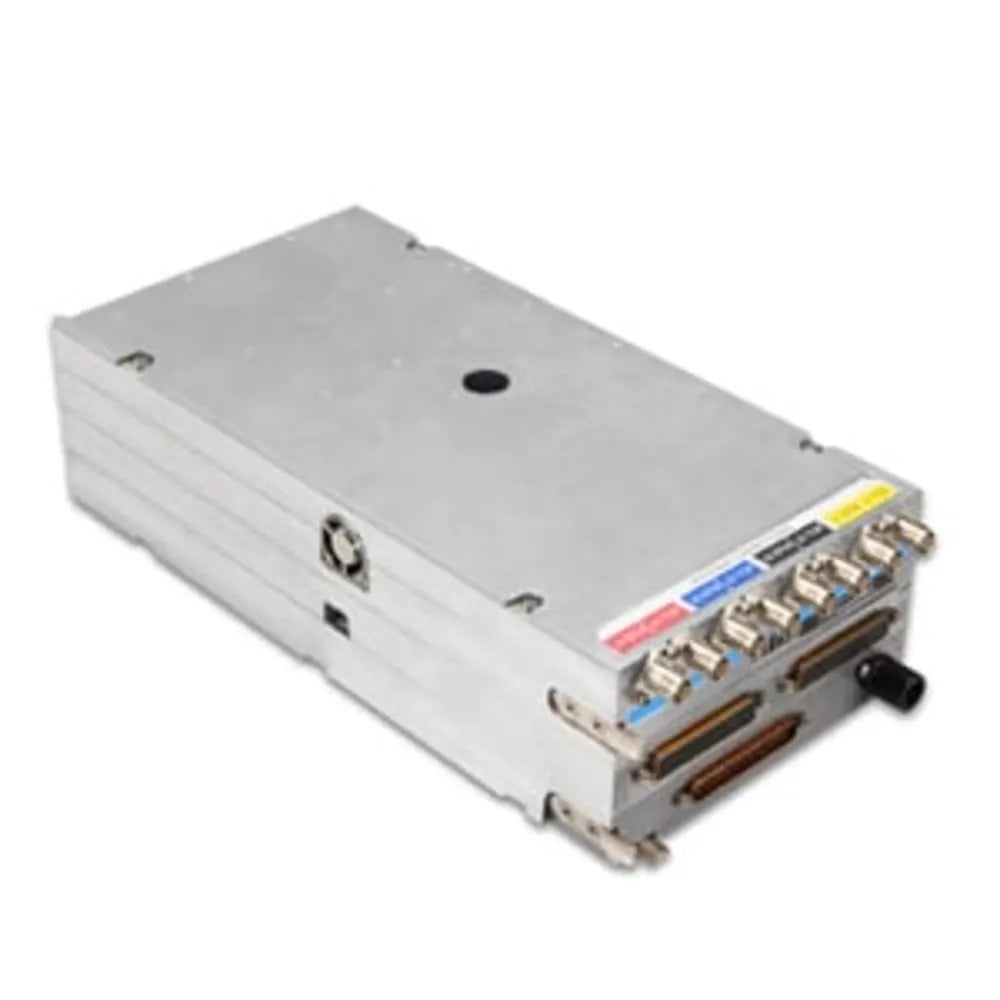

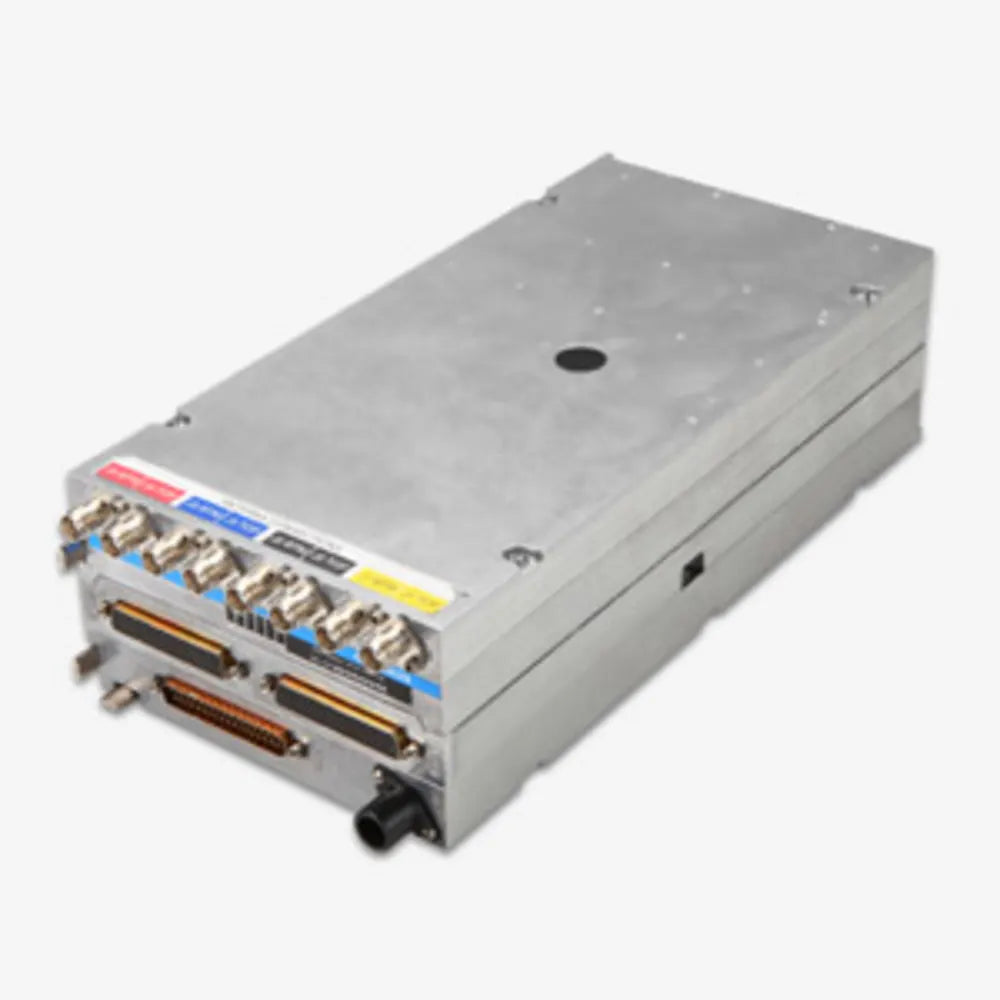

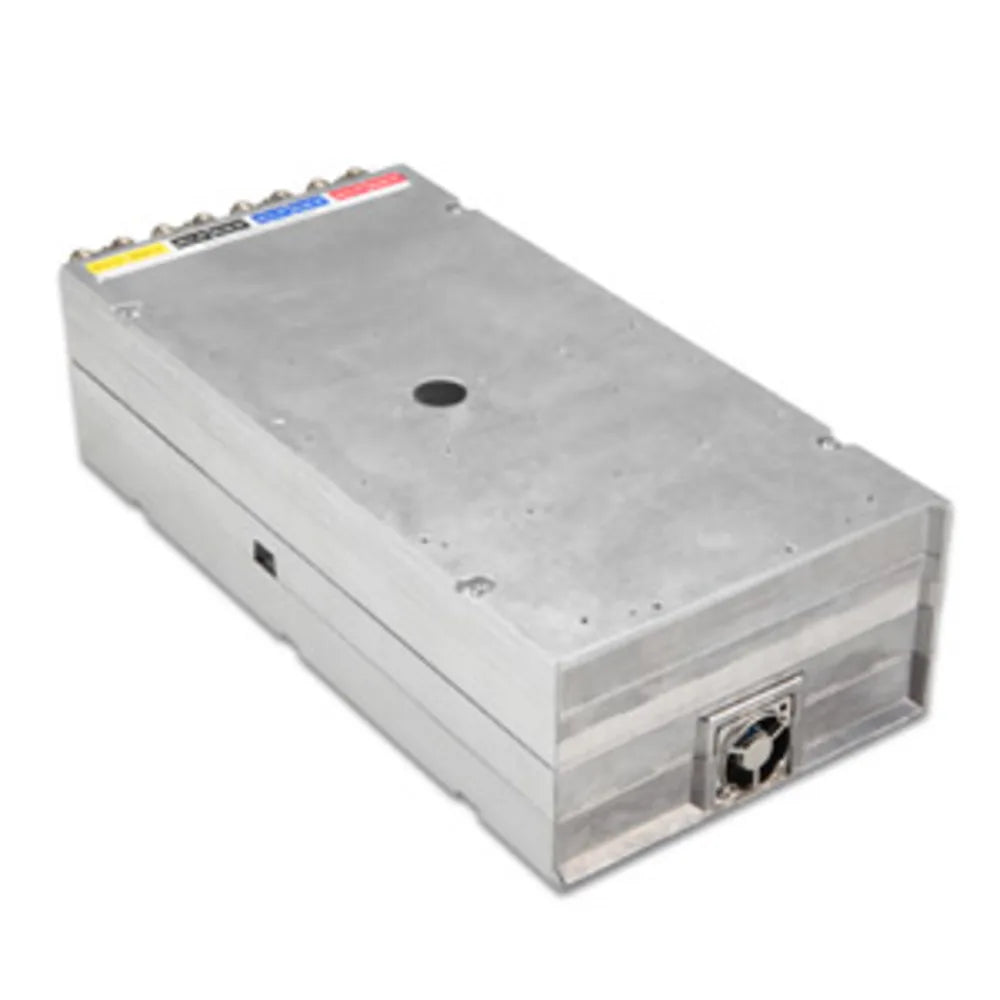

GTS 825 TAS

Affordable traffic surveillance

• Tracks up to 75 targets up to a 40 nm interrogation range
• Active traffic is enhanced with ADS-B ‘In’ for a comprehensive traffic picture
• Spoken ATC-like aural alerts help keep your eyes outside scanning for targets
• Interfaces with a wide range of displays
• Variety of antenna configurations provide installation flexibility

Alertness. Vigilance. Situational awareness. They¡¯re the most vital safety factors any pilot can bring to the cockpit. But for added protection in busy airspace, our GTS? family of ADS-B enhanced Traffic Advisory Systems (TAS) and Traffic Collision Avoidance Systems (TCAS I) can make a world of difference. Featuring exclusive CLEAR CAS? technology, these attractively priced systems provide accurate, dynamic surveillance of nearby transponder-equipped aircraft ¡ª with ATC-like spoken audio alerts to help pilots see and respond instantly to potential flight path intrusions.

Faster Detection Means Better Protection

Using advanced ¡°NextGen¡± system concepts, the GTS 825 offers built-in ADS-B receiver technology which is enabled with installation of a GTX 330 ES ¡°extended squitter¡± Mode-S transponder (sold separately), or other complementary class of ADS-B ¡°Out¡± equipment, such as our GDL 88 datalink. The system can display traffic symbols and advisories on a variety of compatible display products in the cockpit.

By synthesizing both active and passive traffic surveillance, the GTS 825 is able to automatically report and receive more stable, and more detailed, traffic data. This means future capabilities will include aircraft flight ID, GPS-based positioning, relative direction and altitude, plus vertical and course trend vectors (if available, on compatible displays). Thus, instead of just seeing random targets, pilots can now identify and track specific aircraft flight trajectories with much greater precision. So, in busy airspace, they¡¯re able to fly with a much clearer tactical picture of their immediate traffic situation.

Serious Show-and-tell

The GTS 825 can track up to 75 traffic targets simultaneously ¡ª and display up to 30 intruder threats at a time, depending on the specific capabilities of the display system being used. (There is no dedicated panel instrument for Garmin TAS; it interfaces with many compatible displays). Targets are depicted using familiar TCAS-defined symbology. And selectable horizontal display ranges let pilots configure the presentation to their specific flight requirements.

Voice Alerting Helps Keep Heads Up, Eyes Out

Instead of the generic ¡°Traffic, traffic¡± voice alerts of some earlier-generation systems, the GTS 825¡¯s exclusive CLEAR CAS technology provides for expanded audio messaging in an ATC-like verbal format: ¡°Traffic. One o¡¯clock. High (or Low or Same Altitude). Two miles.¡± If surveillance bearing information is not available on the intruder, ¡°Traffic, No Bearing¡± is annunciated.

By vocalizing more specific traffic–spotting information, the GTS 825 lets pilots stay ¡°eyes out¡± while locating the intruder target on the cockpit display. This can save vital split-seconds in a fast-converging situation. And sometimes, those extra split-seconds can mean a lot.

There¡¯s More Than 1 Way to Keep Your Distance

The GTS family of TAS and TCAS I systems offers a full range of traffic surveillance capabilities to fit your specific aircraft and operational criteria. Engineered for faster, higher-performance GA singles and twins, the GTS 825 offers 400 W of nominal power output, a +/- 10,000-foot vertical separation maximum, and up to 40 nm of active interrogation range in the forward direction. All GTS units will operate to 55,000 feet. And a Mode-S transponder (sold separately) is required as part of the GTS 825 system installation.

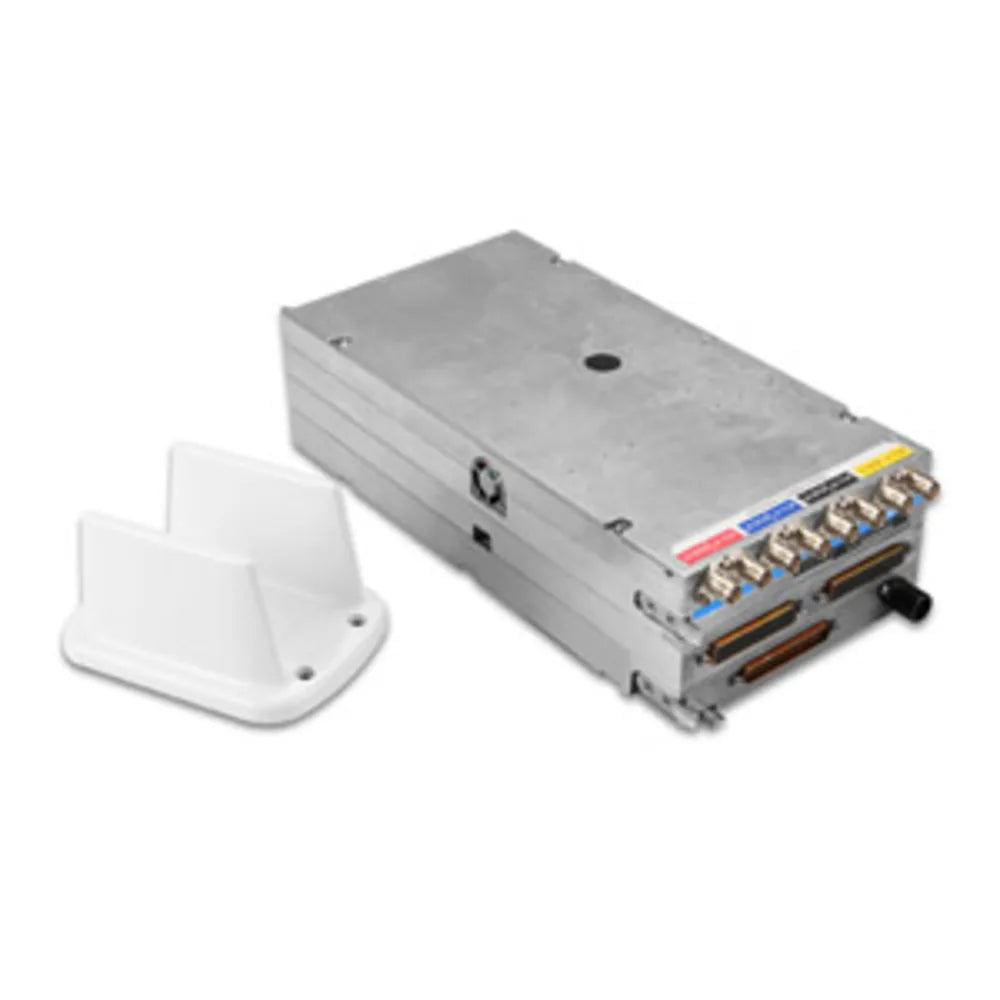

Select from a Variety of Antenna Options

To optimize signal reception for all types of aircraft, we offer a wide selection of antenna models and configurations. The typical GTS 825 installation includes both top-mount directional and optional bottom-mount antennas (directional or omni) to help maintain surveillance on aircraft directly below you ¡ª while minimizing target drop outs during turns and maneuvers. For high-speed aircraft, optional low-profile directional antennas are also available.
