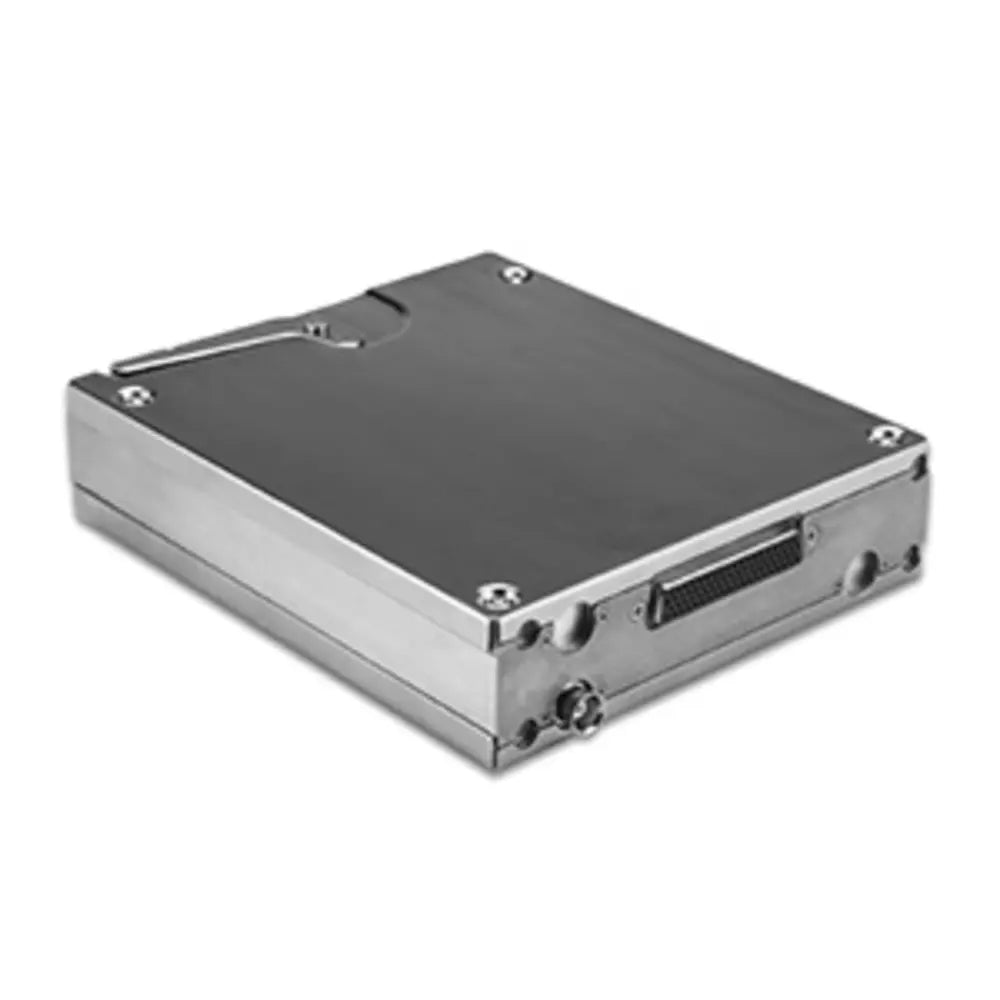

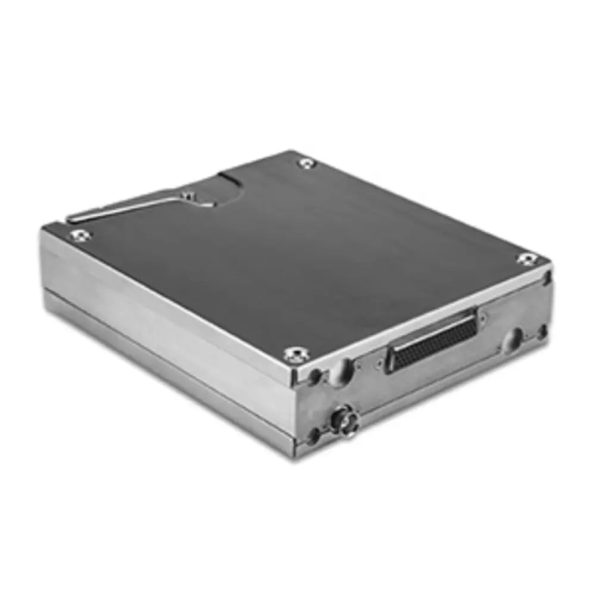

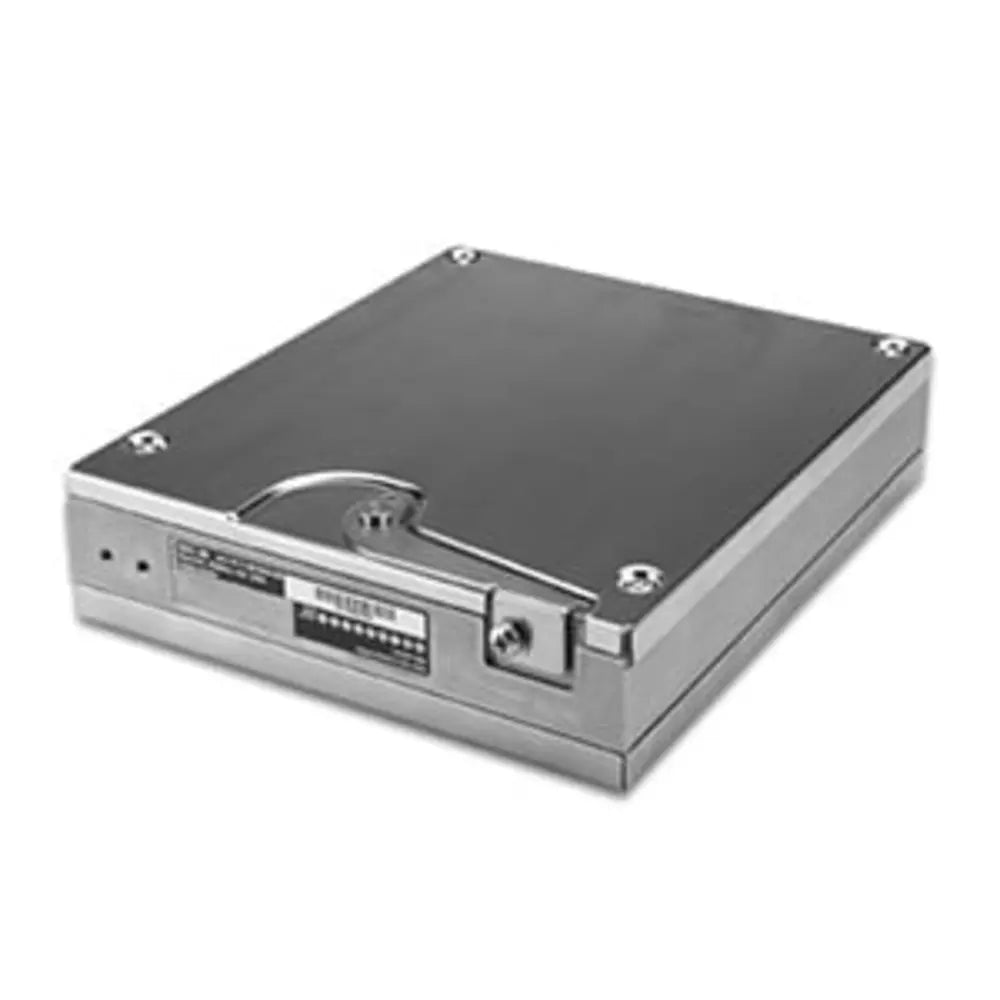

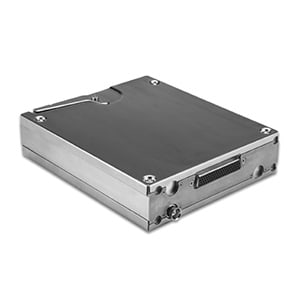

GDL 84

Affordable, All-in-one ADS-B ‘Out/In’ Solution

• Dual-link solution meets U.S. ADS-B ¡°Out¡± requirements with built-in SBAS/WAAS GPS receiver
• Displays subscription-free ADS-B weather and datalink traffic using compatible mobile apps and Garmin portables
• Packaged with Flight Stream? 110 or 210 device for wireless connectivity with compatible mobile apps and Garmin portables via Connext?
• Approved today for installation in hundreds of popular aircraft models, including helicopters
• Supports TerminalTraffic? and our patented TargetTrend? traffic display

For aircraft owners, including helicopters, seeking an easy, cost-efficient way to meet the requirements for ADS-B ¡°Out¡± equipage ¡ª while enjoying the ¡°In¡± benefits of subscription-free weather and traffic ¡ª our GDL 84 offers the ideal solution.

Access More Advanced Capabilities

In addition to audible target alerts (¡°Traffic. Two o¡¯clock. High. Two miles.¡±) the GDL 84 will also support the latest in ADS-B traffic display capabilities, which can be viewed with the Garmin Pilot?, ForeFlight Mobile or FltPlan Go apps on your iPad? or other compatible tablet. With Garmin Pilot, our patented TargetTrend relative motion tracking technology offers a faster, more intuitive way of judging aircraft trajectories and closure rates in relation to your aircraft¡¯s flight path. LIkewise, in the airport environment, TerminalTraffic? technology works with SafeTaxi^? to support geo-referenced display of ADS-B-equipped targets, including taxiing aircraft and ground service vehicles, on the surface diagram.

Eye in the Sky

Built to meet the unique and stringent demands encountered by helicopter operators, the GDL 84H offers ADS-B ‘Out’ solutions while also providing safety enhancing ADS-B ‘In’ benefits specifically for helicopters. As part of our Terminal Safety Solutions, TerminalTraffic for helicopters helps you identify potential traffic conflicts by minimizing nuisance alerts from fixed-wing aircraft and abbreviating select alerts while performing unique helicopter maneuvers such as hovering. And when paired with our GTN series touchscreen navigators, On Scene mode reduces nuisance alerts when you¡¯re intentionally operating in close proximity to other helicopters, such as during electronic news gathering, alerting you only when new threats are present.

Single-entry Squawk Code

The NextGen equipage rules require your ADS-B ¡°Out¡± source must be able to squawk the same code as your transponder. The GDL 84 has built-in, patented AutoSquawk that automatically synchronizes with your onboard transponder for its squawk code, and then transmit that data through its own datalink. Not only does this provide a single point of data entry for ADS-B ¡°Out¡±, but it also allows you to meet the new regulations without the need for expensive control system or transponder upgrades. Thus, GDL 84 works in the background to make code entry fast and easy ¡ª while helping to make your path to ADS-B compliance as simple, straightforward and cost-effective as possible with older transponders.

You Can Grow From Here

As the NextGen airspace system evolves, you may find that you want to add ADS-B weather and traffic interface capabilities to an MFD or other navigation display onboard your aircraft. While the GDL 84 is designed for use with compatible tablets and portables, Garmin does offer an easy growth path to installed-system display capability. For a minimal cost, your GDL 84 can be returned to Garmin for factory upgrade to a GDL 88 configuration. With this upgrade, your receiver can bring all the graphical benefits of ADS-B to your in-panel Garmin displays, like the GTN series and G500/600 flight displays.

1Complete display compatibility details for the GDL 88

Learn More

Let us help you find the solution that best fits your needs with our helpful videos and interactive tools. Visit the Academy.

1Check Supported Devices for the latest features and compatibility information
Compatible Apple? and Android? devices sold separately. Apple and iPad are trademarks of Apple Inc. Android is a trademark of Google Inc.
